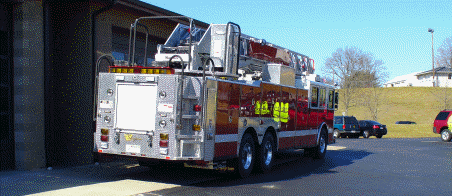

Ladder 71 - 2006 Seagrave Ladder

Features and Specifications

100' Ladder with 500lb tip rating (0 - 80 w/1000gpm ladder pipe)

Capability to lower below 0 until the tip is on the ground

4 outriggers for stabilization (2 A-frame and 2 H-style)

Improved safety interlocks for ladder operation

Seating for 6 personnel

A larger cab to give more room for personnel

3 point restraints for all passengers

6 channel ABS with all disc brakes

Telma driveline retarder

Detroit Diesel Series 60 500hp motor

Allison 4000EVS 5-spd transmission

10kW Smart Power hydraulic generator
